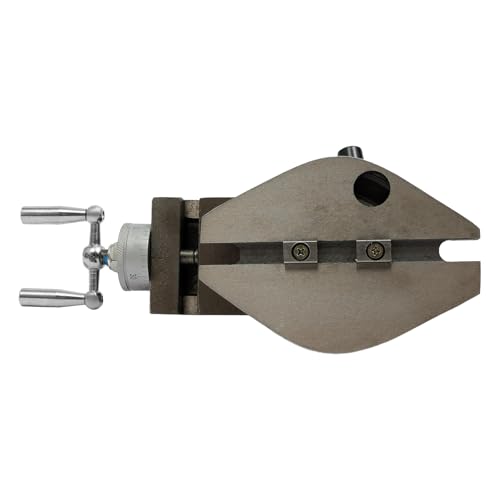

AT300 Lathe Tool Rest Assembly, Mini Post Metal Tool Accessories Assembly with 360° Rotation for AT300-2

Details
Clear Scales:They can help with more precise adjustment and machining. Practical Handle:The ergonomic handle can provide a more comfortable grip and ensure convenient operation.Specification
Material:Cast Iron Operation Mode:Manual Process:High-Frequency Quenching,Tempering Applicable Lathe Model:AT300-2 Multifunctional Tool Machine Base Rotatable Angle:90°Clockwise/Counterclockwise Disc Rotatable Angle:60°Clockwise/Counterclockwise Scales(Actual 360°Rotatable) Tool Table Rotatable Angle:360° Number of Installable Tools:4 Applicable Tool Handle:12*12mm/0.47*0.47in,14*14mm/0.55*0.55in Changing Speed:10 Sec Slot Height:16mm/0.63in Center Height:76mm/2.99in Square Cutting Table Width:65mm/2.56in Stroke:76mm/2.99in Total Length:160+83mm/6.3+3.27in Handwheel Length:83mm/3.27in Aperture:100mm/3.94in Small Aperture:20mm/0.79in Disc Diameter:100mm/3.94inPackage Included
1*Lathe Tool Rest AssemblyNotesc 1.When disassembling,the disassembly sequence should be followed,and hard objects should not be used to randomly knock and affect the accuracy of the parts. 2.Clean all parts thoroughly during assembly,and lubricate the transmission components with grease,please use safety precautions such as shields and eye protection(not included)while working.Please wear gloves(not included)when using them. 3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement,and make sure you do not mind before ordering.

【Good Auxiliary Tool】This lathe tool holder is compact, which will not affect the speed and process of tool replacement during use, which can improve processing speed.
【Improving Efficiency】The tool changing speed of this product is only 10 seconds, which can improve the efficiency of processing and turning.
【High Accuracy】The tool table and rotating disc can rotate within 360°, which not only makes machining more convenient but also improves accuracy.
【Build to Last】It is made of hard cast iron and is high-frequency quenched and tempered to provide strong rigidity, high hardness, wear-resistant performance, and long service life.
【Application】This lathe tool rest assembly is suitable for fing tools with handles of 0.47 * 0.47in and 0.55 * 0.55in and can be installed on the AT300-2 multifunctional tool machine.
