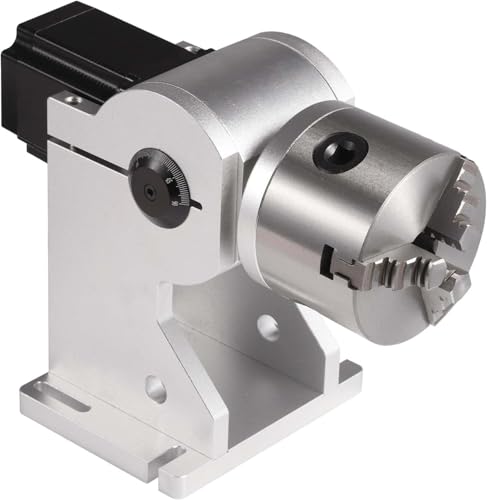

Monport 80mm Rotary Axis Attachment for Fiber Laser Engravers, 3 Jaws Rotary Chuck Ring Jewelry Marking Tool Rotary Tool with a Scale Dial for Y Axis 360 Round Metal Marking

Dimension & Specifications

Input Voltage: 24 V

Base Length: 3.7 in. (9.5 cm)

Base Width: 4.7 in. (12 cm)

Chuck Diameter: 3.1 in. (80 mm)

Chuck Clamping Range: 0.8-2.8 in.(20-70 mm)

Product Dimensions: 8.3×4.7×6.5 in.(21x12x16.5 cm)

Net Weight: 10.6 lb.(4.8 kg)

360° Rotary Marking: Monport’s 80mm 3 jaw rotary axis boasts 180° stepless angle adjustment and 360° smooth rotation for engraving around the complete inner or outer circumference of round objects, ideal for rings, bracelets, pens, cups, tubes, and more!
Adjustabke Jaws: Our rotary laser marker and engraver attachment has 6 clamping jaws and a chuck key included to securely hold cylinders 0.08-2.5 inches (2-75 mm) in external diameter or 1-2.7 inches (25-75 mm) in inner diameter.
Easy Installation: Just connect the rotary tool’s convenient and secure 4 pin aviation plug to the dedicated port on your Monport fiber laser machine and configure the settings in your software to get your marking project started.
Powerful Operation: Our chuck rotary axis uses a NEMA 23 2-phase stepper motor to provide precise positioning and smooth motion for efficient operation; the aluminum and stainless steel construction ensures lasting corrosion resistance.
Superior Support & Service: Order this rotary axis attachment today and enjoy fast US-based shipping, a strong 1 year warranty, and Monport’s ever helpful customer service and tech support.
